Crossing Technology Dual Coil Classic PID Controller
Crossing Technology Dual Coil Classic PID Controller

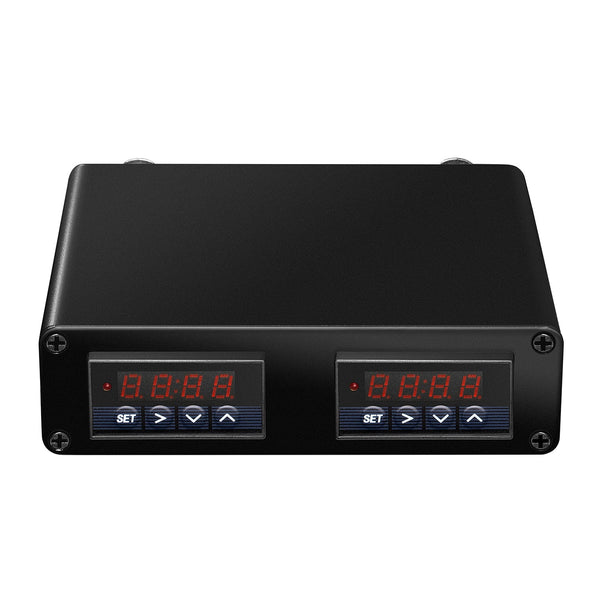

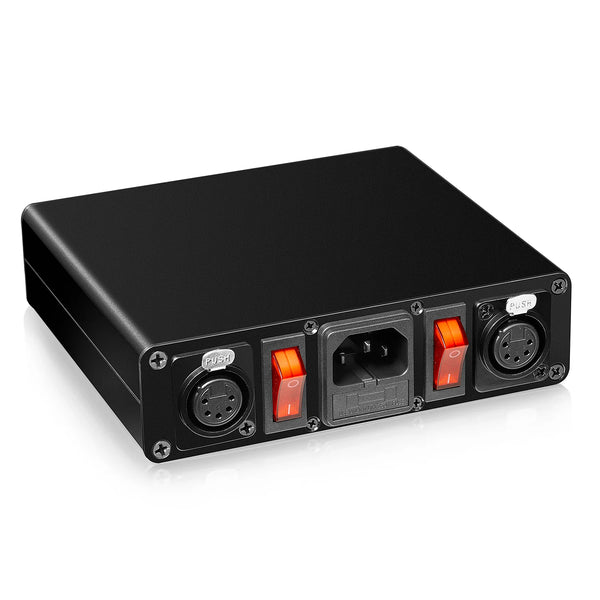

Introducing the new Dual Coil PID Controller from Crossing, compatible with the full range of SZ Crossing coils! This is a regular PID controller with a live temperature display and screen on the front. The controller also allows the temperature to be adjusted in one Fahrenheit increments giving you full control of the temperature. It has two separate coil plugs on the back, each with their own power switch and temperature control screen on the front, allowing you to run two different setups with different temperatures at the same time!
Specifications:
Dual Coil PID Controller

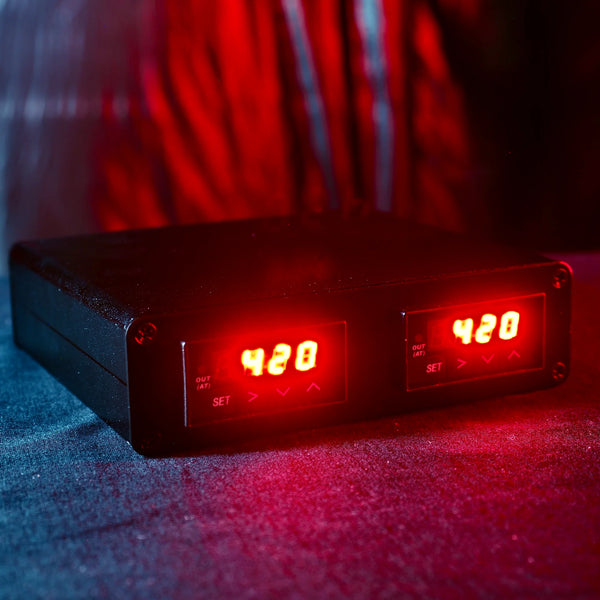

Live Temperature Display
1 Fahrenheit Resolution/Increments
Red Digital Display
Two Power Switches on Back
Grippy Silicone Feet
US Power Cord Included
110v/220V Compatible Controller
ROHS and CE Certified
1 Year Warranty Against Defects
Confirmed compatibility with Crossing, DABPRESS, Vapvana, CH, Auber, Disorderly Conduction (DC) 710 Coils and more
PIN Wiring:
Pin 1 is AC live line, pin 2 is AC zero line, pin 3 is temp positive, then 4 is temp negative and pin 5 is ground
