E-Nail Heating Coil | 5 PIN XLR

$34.99
Size

E-Nail Heating Coil | 5 PIN XLR

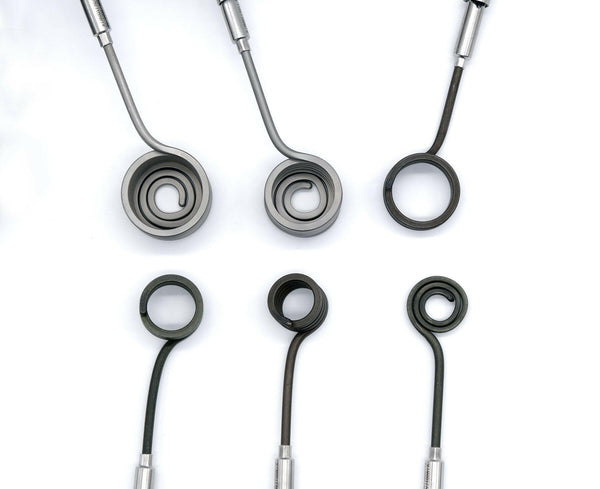

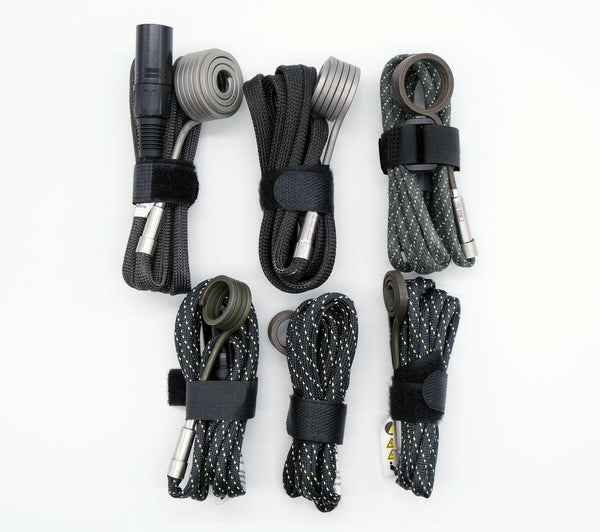

Coil Sizes:

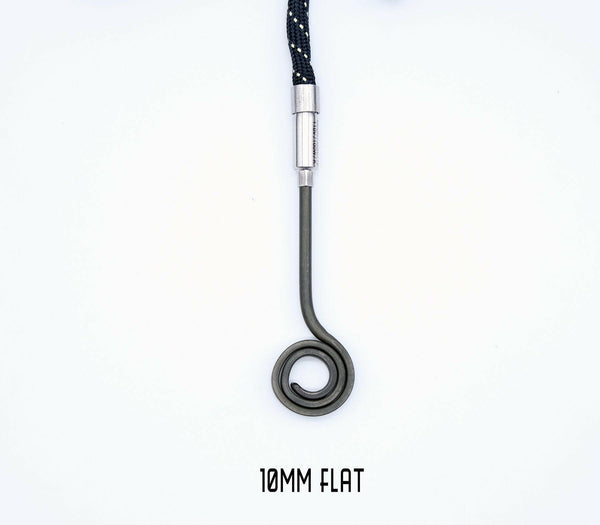

-10mm Flat

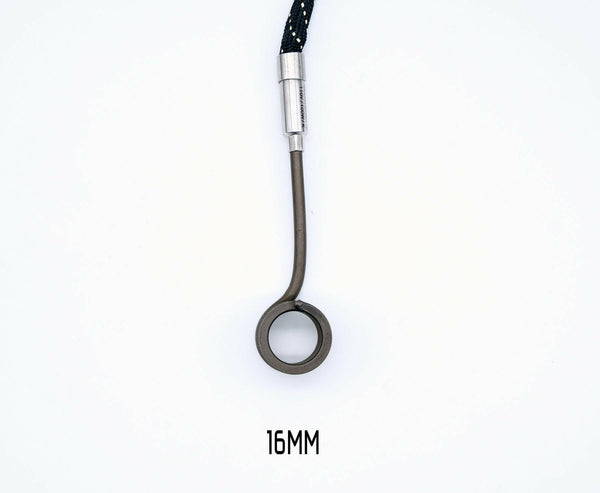

-16mm Barrel

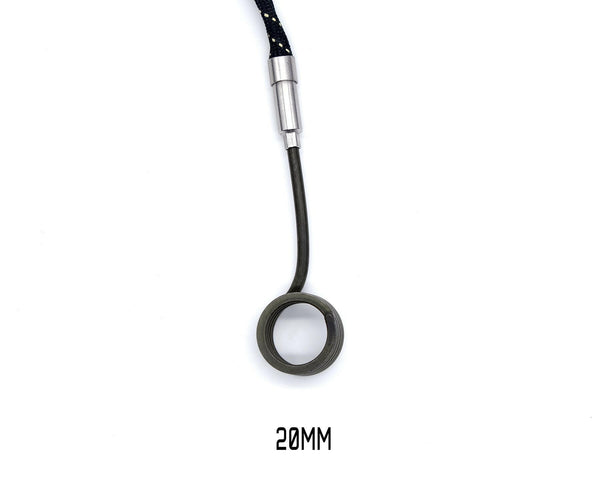

-20mm Barrel
-20mm Axial

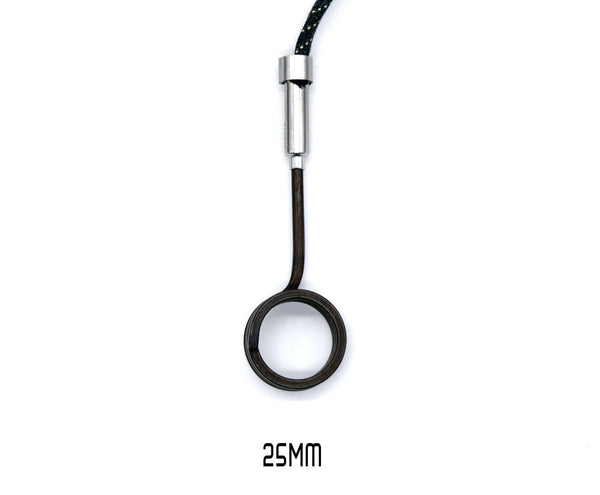

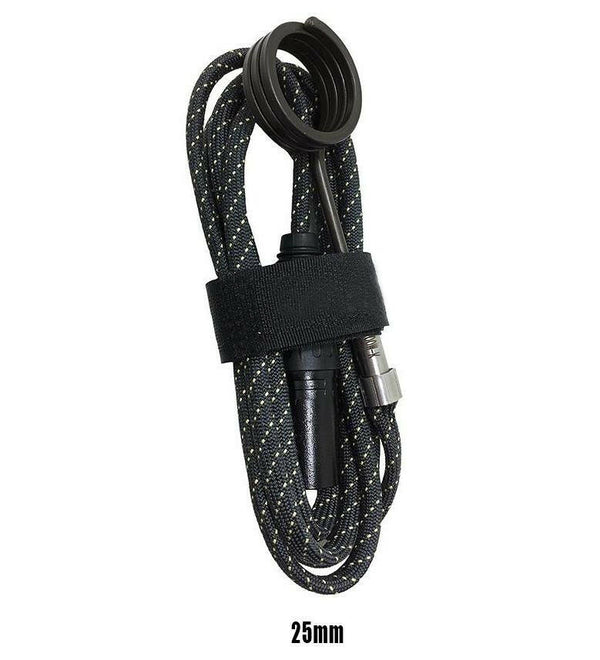

-25mm Barrel

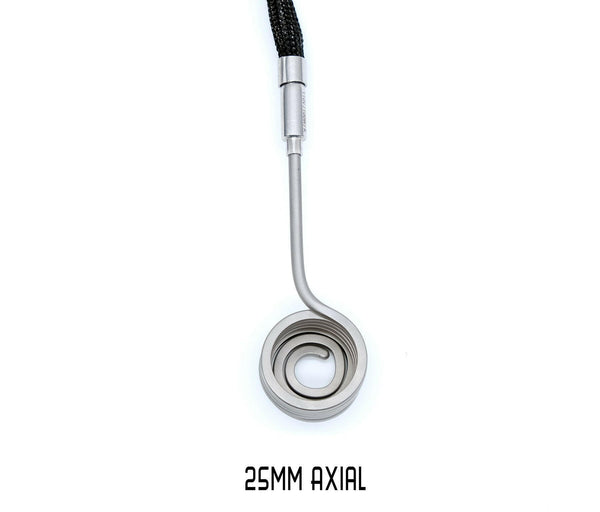

-25mm Axial

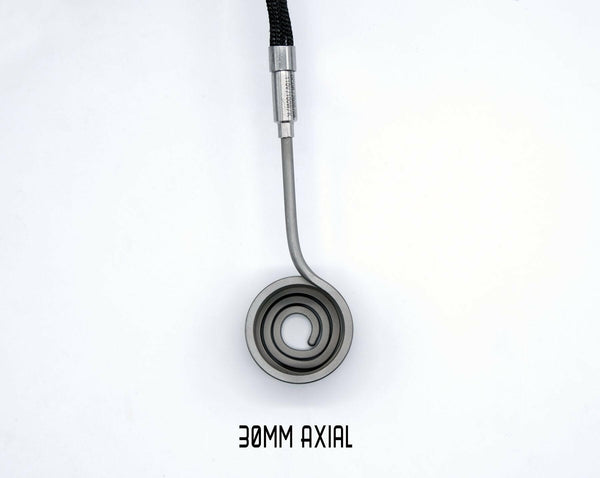

-30mm Axial
 

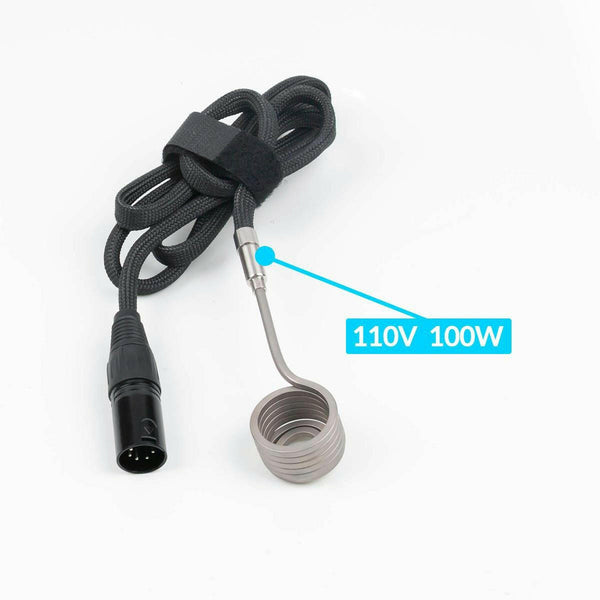

For: 110v Box - 100w coil
(25mm and 30mm are 150w)
Coil size is the inner diameter in millimeters

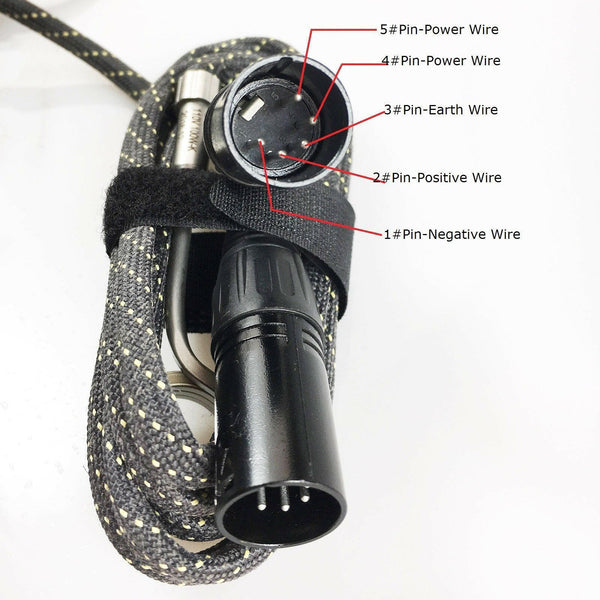

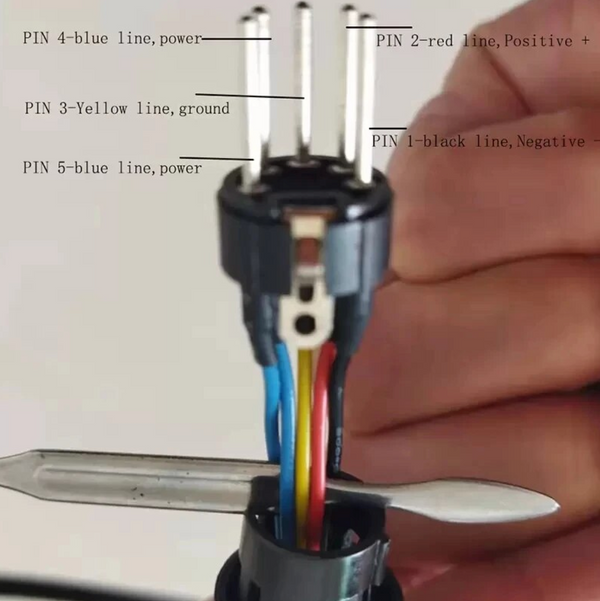

See PIN diagram photo for fitment:
Pin1: Thermocouple-
Pin 2 Thermocouple+
Pin 3 : Ground
Pin 4 Power
Pin 5 Power
 
There are a few different ways other manufacture's wire their E-nail controller boxes/coils. These coils don't work with every brand of E-Nail controller box but can easily be DIY re-wired/soldered.
 
The coils will fit most E-Nail controller boxes sold by Discount E-Nails, except the "Crossing" brand E-Nail controllers, Dabpress, and Pack Science. We sell those coils separately. 

Article about how to check your coils wiring:

-90 day warranty on the coil-
 
Technical Details:

Brand: Fancier
Coil Inner Diameter: 10mm/16mm/20mm/25mm/30mm
110v
100w (25mm and 30mm are 150w)
5PIN XLR Connection
Coil height: 12.7mm
Item Weight: 3.05 ounces  
Coil tube size: 3*3mm square
Resistance Wire: Nickel chrome
Thermocouple: K-type
Cable length: 51 Inches
Material: Stainless steel
Sheath: Fire Resistant Kevlar
